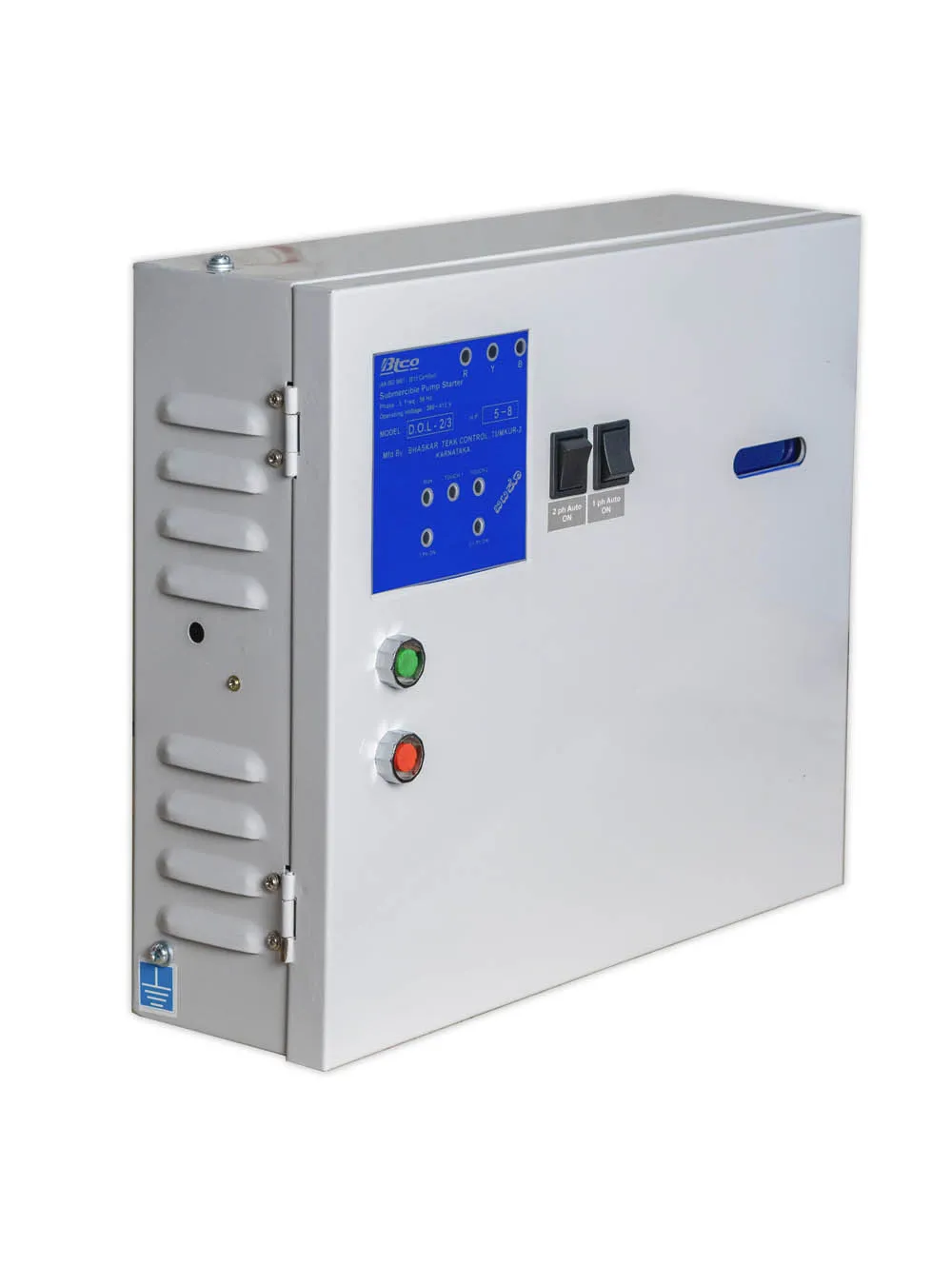

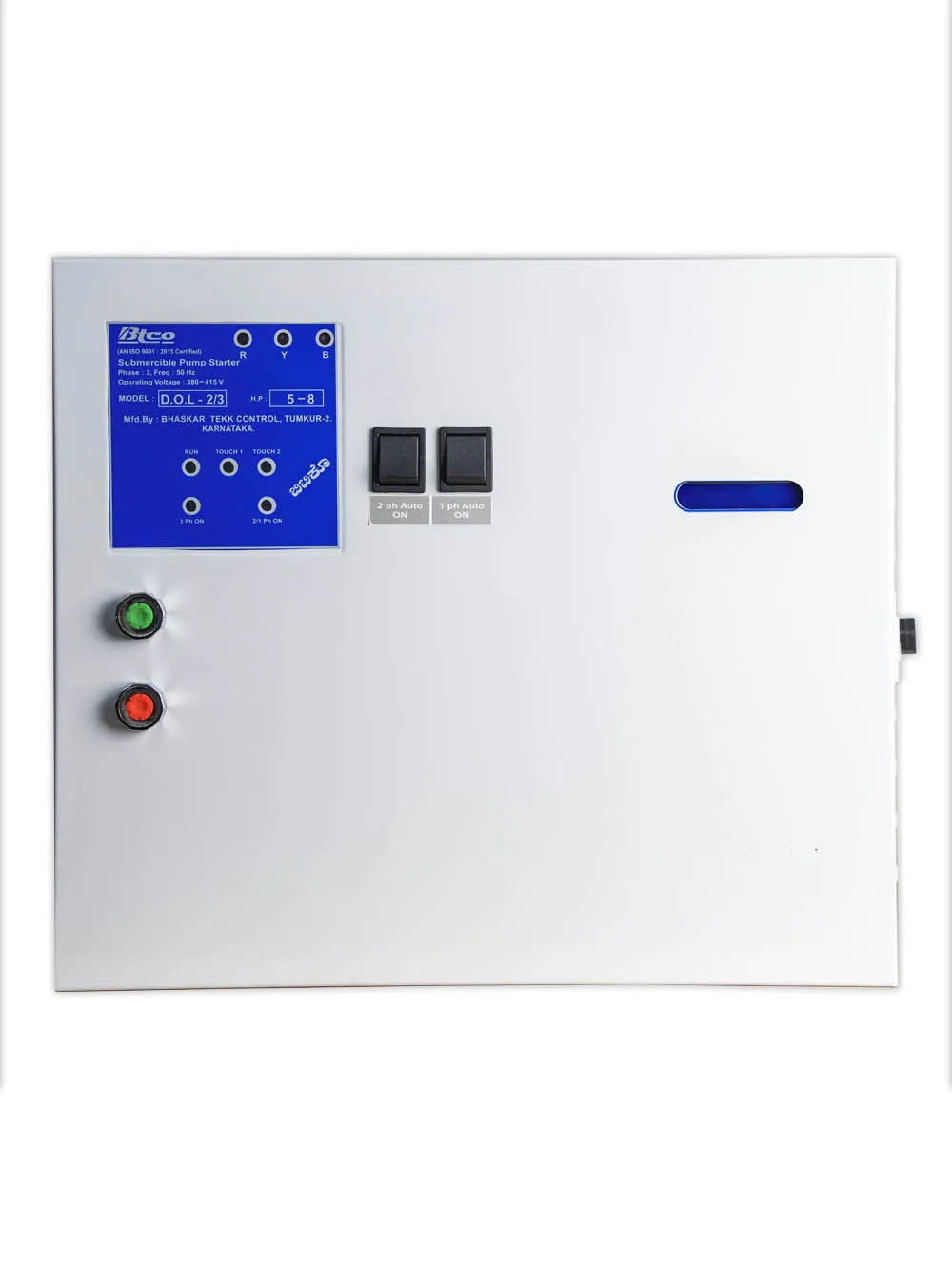

DOL Combined Motor Auto Starter

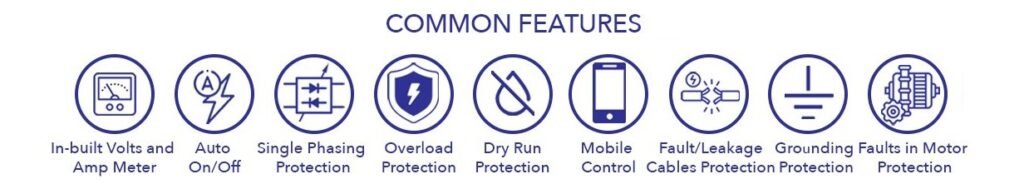

Feature	Description	Message Displayed
Mains Fault Detection	Checks if there are any problems in Mains	Mains Problem
Protection from Cable/Kit faults	Monitors faults/leakages in cable that goes to motor or in winding	Check Cable/Kit
Grounding and Imbalance Detection	Keeps track of grounding or Imbalance issues	Ground/Imbalance
Dry Run detection	Provides protection against dry-run of the pump using a current algorithm. It can restart automatically after the preset timer	Dry Run Trip
Overload detection	Starter watches for overload scenario and trips motor in case of deviation from Overload trip amps set	Overload Trip
Capacitor health monitoring	Surveillance on Capacitor and error displayed in case of issues	Check Capacitor
Stalling/Jamming Protection	In 2Ph or 1Ph mode, error is displayed in case of stalling or jamming	Rotor Lock Trip
Device Internal Health monitor	Auto detects in case of issues with device internally	Instrument/Inst Fault
Auto Overload trip amps setting	When starter connected with motor for the first time, it auto detects the healthy amps range and sets it	NA

Most suitable for Submersible Pumps of size 4″ and 6″
Works for the range 5-8 HP and 7.5-10 HP with any number of stages
Built-in 1 Phase (Juice), 2 Phase and 3 Phase auto Start Feature with a start delay from 5 seconds to 240 seconds configurable by the user
Built-in digital Ammeter viz. IR, IY, and IB for all 3-Phases simultaneously
Built-in digital voltmeter viz. V_RY, V_YB, and V_BR for all all 3-Phases simultaneously
It can be controlled using a Mobile by sending an SMS to Switch it off or Switch it on. Also, status like Voltage, Current, and other fault messages are sent to your mobile as SMS
Note: The GSM Module mentioned above is an additional feature that can be added to your device at an additional cost (more info on GSM tab)
LCD to interact and make settings on the device

Specification	Details
Range	3-8 HP and 7.5-10 HP
Number of Phases	3
Operating Voltage	380 – 440 V
Frequency	50 Hz

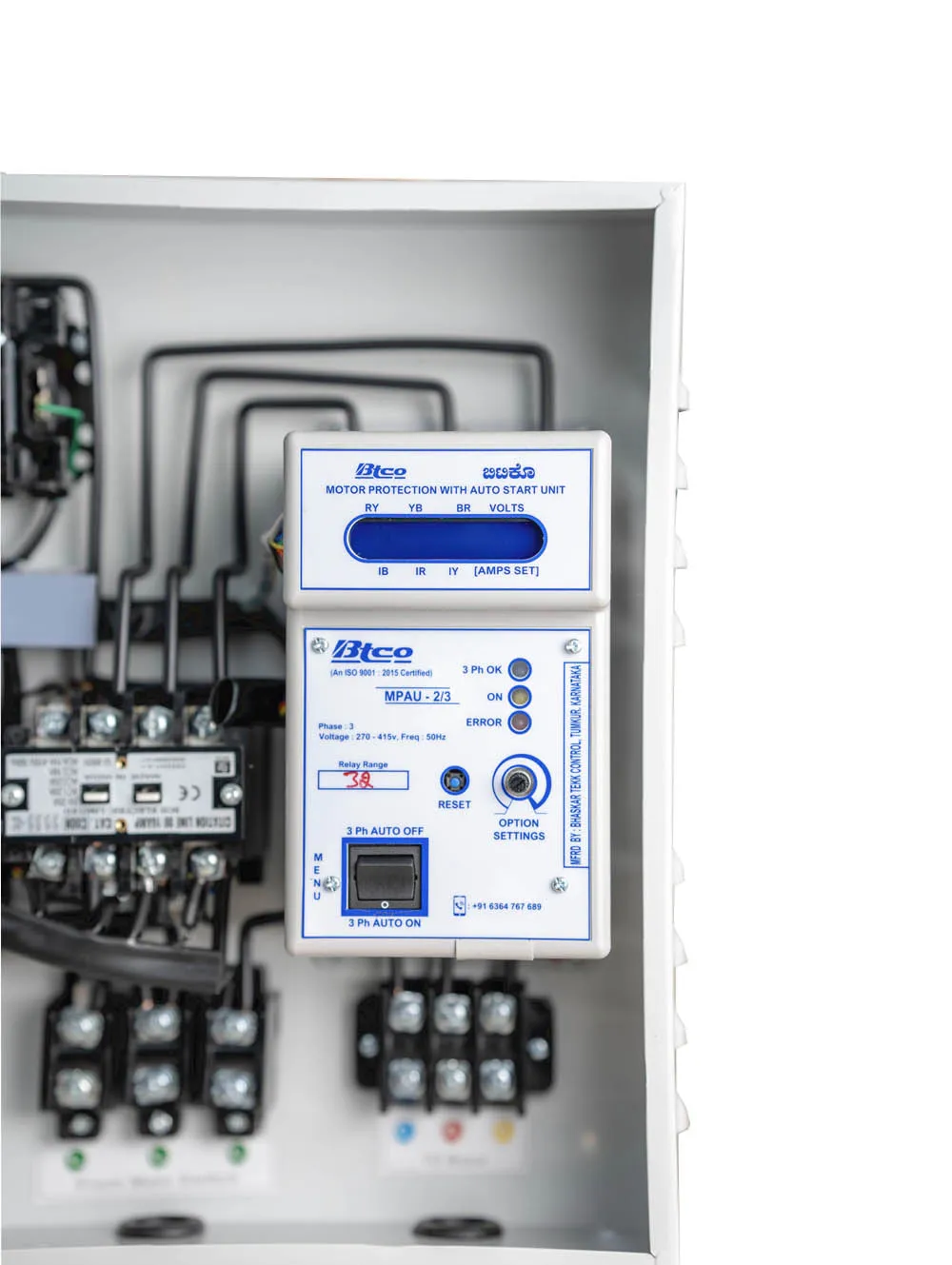

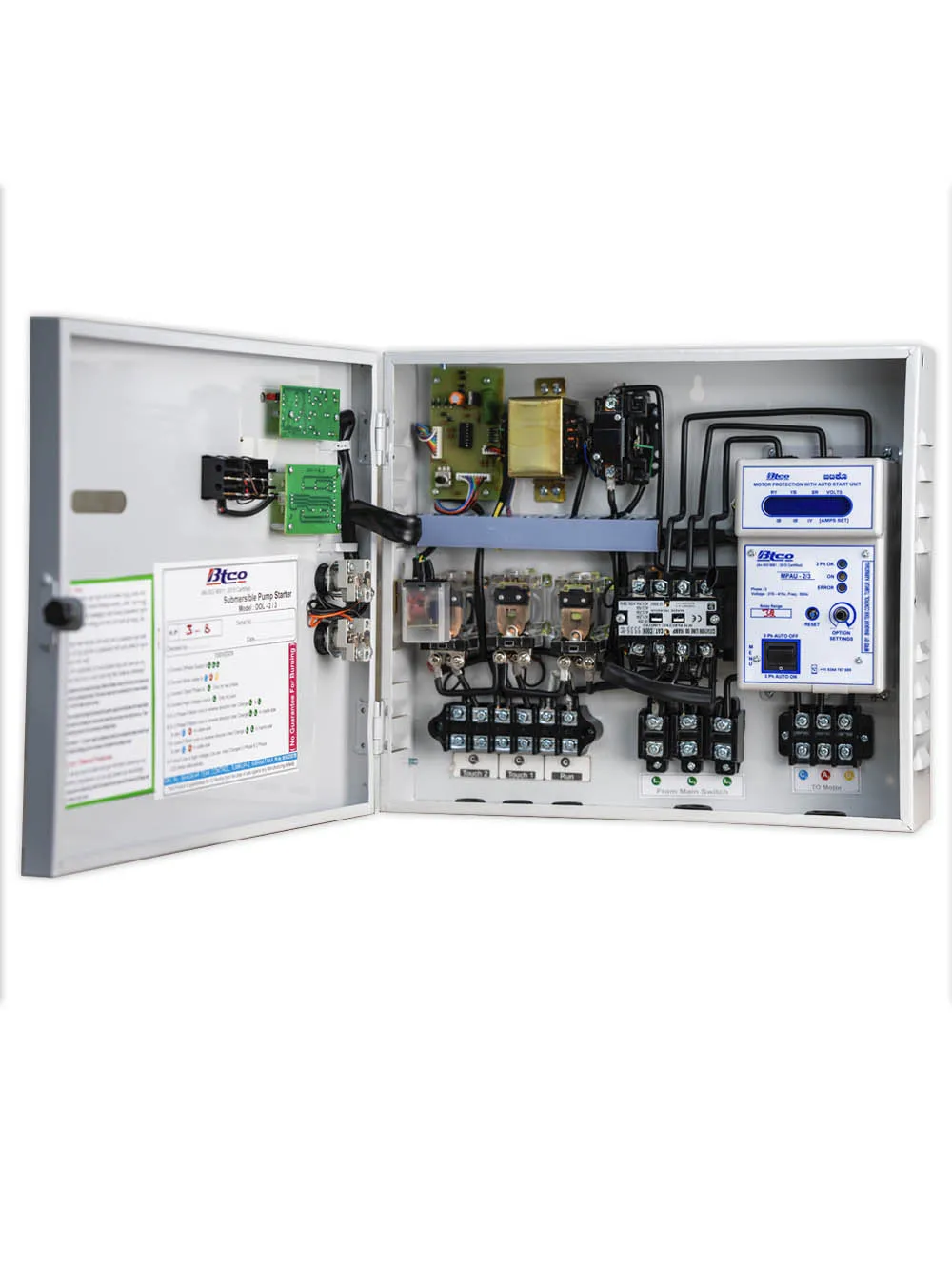

Incorporated with	BTCO Make Motor Protection with Auto Unit (MPAU) – 1 No.
BCH Make Contractor (for 3-8 HP)	COON 00, 16 A Rating 4 Pole – 1 No.
BCH Make Contractor (for 7.5-10 HP)	COON 00, 25 A Rating 4 Pole – 1 No.
1 Way Connectors	3 Nos.
3 Way Connectors	1 No.
Power Relay 40A	3 No.
1 Pole TC make 25 Amps Contractor	1 No.
LED PCB for 3 Phase Indication	1 No.

The below features can be provided with an extra cost:

Timers
Types of Timers below:
- Normal Timer
- Cyclic Timer
- Real-Time Clock (RTC) Timer
GSM Module – For operating your starter sending SMS
Salient Features of GSM Module:
- It can be connected to our BTCO make MPAU through the 5 Pin Relay Mat provided in it
- The starter can be switched ON / OFF by sending an SMS from the user’s Mobile.
- The status of the Power or Motor running condition can be viewed over SMS received by the user’s Mobile by sending an SMS to the Starter Module.
- If the Motor is running in good condition user’s mobile receives the message with voltage & current
- If the Starter is tripped user’s mobile receives the message with voltage & current and the reason for tripping.
- Overload settings can be changed by sending an SMS from the user’s mobile

GSM Module of BTCO Make: Contact us for the pricing

One-year Warranty from the date of sale for any manufacturing defects.

During this period, the manufacturing defects would be covered free of cost at any of our service centres.

Additional information

Color	Blue

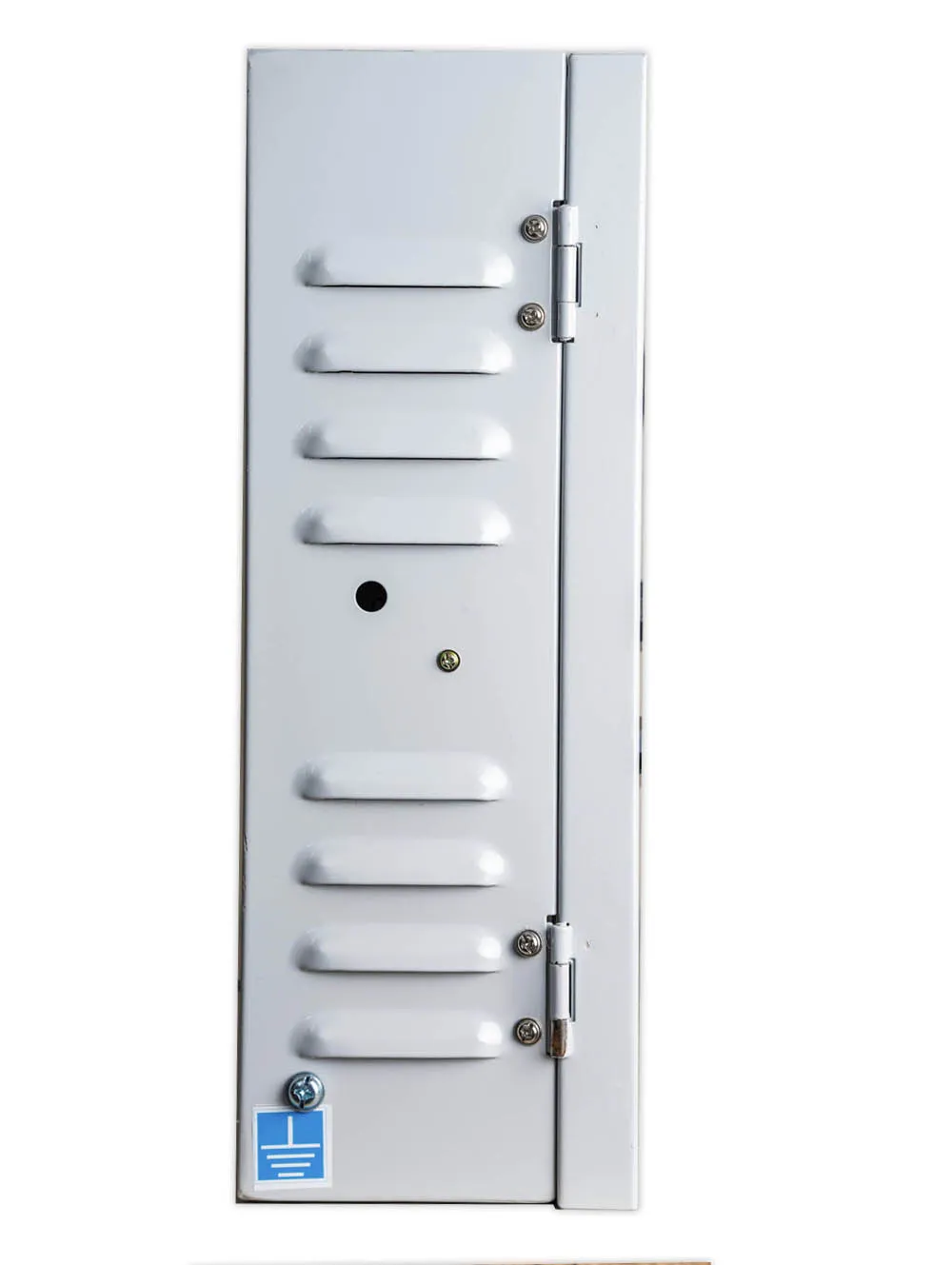

Material	Powder Coated Sheet Metal Box with Air Ventilation
Dimension	315 X 252 X 125 MM
Weight	5.4 Kgs
HP	5-8 HP, 7.5-10 HP
