Submersible Pump Starters
A burnt submersible motor means a costly rewind and days without water. The right starter stops that from happening. Every BTCO starter is fully automatic and has dry run and overload protection, so it cuts the power before your motor burns. Made in Tumakuru, Karnataka, for 2 to 30 HP motors: DOL and star delta starters, Combined starters for juice line and 2 phase, single phase starters, and mobile control.
Protection in every BTCO starter
A submersible motor burns when it runs dry, runs on a missing phase, or draws too much current for too long. Every BTCO starter watches the motor and cuts the power before that happens. Here is what each starter has.
| Feature | DOL-03 | FASD-03 Star Delta | Combined DOL | Combined Star Delta | Single Phase | MPAU |
|---|---|---|---|---|---|---|
| Fully automatic ON/OFF | Yes | Yes | Yes | Yes | Yes | Yes |
| Dry run protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Overload protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Single phasing protection | Yes | Yes | Yes | Yes | – | Yes |
| Voltage fluctuation protection | Yes | Yes | Yes | Yes | Low and high voltage | Yes |
| Earth fault protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Cable and kit fault protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Rotor lock (jammed pump) | – | – | On 2 phase and juice line | On 2 phase and juice line | – | Yes |
| Automatic capacitor management | – | – | Yes | Yes | Shorted capacitor protection | – |
| Timers (normal, cyclic, RTC) | Timer + WLC variant | Timer + WLC variant | In the app, with GSM Module | In the app, with GSM Module | Domestic model | Optional |
| Water level controller | Timer + WLC variant | Timer + WLC variant | – | – | Domestic model | Optional |
| Digital display: volts, amps, trip reason | Yes | Yes | Yes | Yes | Yes | Yes |
| Mobile control (app + SMS) | With GSM Module | With GSM Module | With GSM Module | With GSM Module | With GSM Module | With GSM Module |
| Runs on juice line / 2 phase | – | – | Yes, juice line up to 10 HP | 2 phase; juice line up to 10 HP | – | – |
DOL-03
Grey lines: not on this model.
- Fully automatic ON/OFF
- Dry run protection
- Overload protection
- Single phasing protection
- Voltage fluctuation protection
- Earth fault protection
- Cable and kit fault protection
- Rotor lock (jammed pump)
- Automatic capacitor management
- Timers (normal, cyclic, RTC)Timer + WLC variant
- Water level controllerTimer + WLC variant
- Digital display: volts, amps, trip reason
- Mobile control (app + SMS)With GSM Module
- Runs on juice line / 2 phase
FASD-03 Star Delta
Grey lines: not on this model.
- Fully automatic ON/OFF
- Dry run protection
- Overload protection
- Single phasing protection
- Voltage fluctuation protection
- Earth fault protection
- Cable and kit fault protection
- Rotor lock (jammed pump)
- Automatic capacitor management
- Timers (normal, cyclic, RTC)Timer + WLC variant
- Water level controllerTimer + WLC variant
- Digital display: volts, amps, trip reason
- Mobile control (app + SMS)With GSM Module
- Runs on juice line / 2 phase
Combined DOL
Grey lines: not on this model.
- Fully automatic ON/OFF
- Dry run protection
- Overload protection
- Single phasing protection
- Voltage fluctuation protection
- Earth fault protection
- Cable and kit fault protection
- Rotor lock (jammed pump)On 2 phase and juice line
- Automatic capacitor management
- Timers (normal, cyclic, RTC)In the app, with GSM Module
- Water level controller
- Digital display: volts, amps, trip reason
- Mobile control (app + SMS)With GSM Module
- Runs on juice line / 2 phaseYes, juice line up to 10 HP
Combined Star Delta
Grey lines: not on this model.
- Fully automatic ON/OFF
- Dry run protection
- Overload protection
- Single phasing protection
- Voltage fluctuation protection
- Earth fault protection
- Cable and kit fault protection
- Rotor lock (jammed pump)On 2 phase and juice line
- Automatic capacitor management
- Timers (normal, cyclic, RTC)In the app, with GSM Module
- Water level controller
- Digital display: volts, amps, trip reason
- Mobile control (app + SMS)With GSM Module
- Runs on juice line / 2 phase2 phase; juice line up to 10 HP
Single Phase
Grey lines: not on this model.
- Fully automatic ON/OFF
- Dry run protection
- Overload protection
- Single phasing protection
- Voltage fluctuation protectionLow and high voltage
- Earth fault protection
- Cable and kit fault protection
- Rotor lock (jammed pump)
- Automatic capacitor managementShorted capacitor protection
- Timers (normal, cyclic, RTC)Domestic model
- Water level controllerDomestic model
- Digital display: volts, amps, trip reason
- Mobile control (app + SMS)With GSM Module
- Runs on juice line / 2 phase
MPAU
Grey lines: not on this model.
- Fully automatic ON/OFF
- Dry run protection
- Overload protection
- Single phasing protection
- Voltage fluctuation protection
- Earth fault protection
- Cable and kit fault protection
- Rotor lock (jammed pump)
- Automatic capacitor management
- Timers (normal, cyclic, RTC)Optional
- Water level controllerOptional
- Digital display: volts, amps, trip reason
- Mobile control (app + SMS)With GSM Module
- Runs on juice line / 2 phase
Which starter does my motor need?
Find your starter in 10 seconds: check your motor's phase, cable and HP, and your power supply. Or answer a few quick questions in our starter finder. Not sure? Call or WhatsApp us with your motor's HP and we'll tell you.
-
3 phase motor, single cable, 3–10 HP, on 3 phase supply
DOL-03 fully automatic DOL starter
With or without timer + WLC. Dry run, single phasing, overload and voltage fluctuation protection.
-
3 phase motor, double cable, 7.5–30 HP, on 3 phase supply

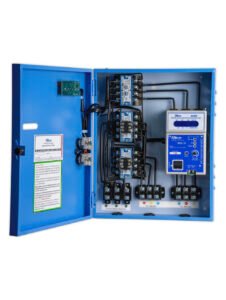

FASD-03 fully automatic star delta starter
Star delta start for big motors, with or without timer + WLC, and the same full protection.
-
3 phase motor, single cable, 3–10 HP, on juice line, 2 phase or 3 phase
DOL-2/3 Combined juice starter
Runs your 3 phase motor when the village supply is juice line or 2 phase, and manages the capacitors automatically.
-
3 phase motor, double cable, 7.5–25 HP, on 2 phase or 3 phase (juice line up to 10 HP)

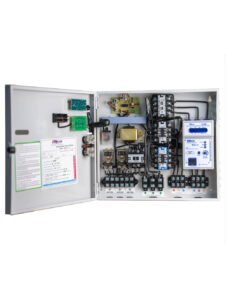

FASD-2/3 Combined star delta starter
Star delta start on 2 phase or 3 phase supply; the 7.5–10 HP model also runs on juice line.
-
Single phase motor, 2–5 HP
FASP-01 fully automatic single phase starter
Domestic (2–3 HP) has a water level controller and timers for homes; Agro (2–5 HP) is for farm borewells. Low and high voltage protection.
-
Auto start and motor protection unit, 3 phase, up to 30 HP

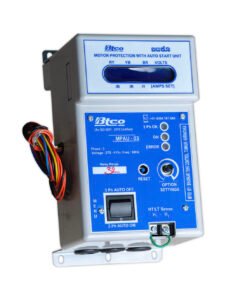

MPAU auto start unit
Automatic ON/OFF with dry run, single phasing, overload and voltage fluctuation protection, and a volts and amps display.
-
You want to switch the motor from your phone

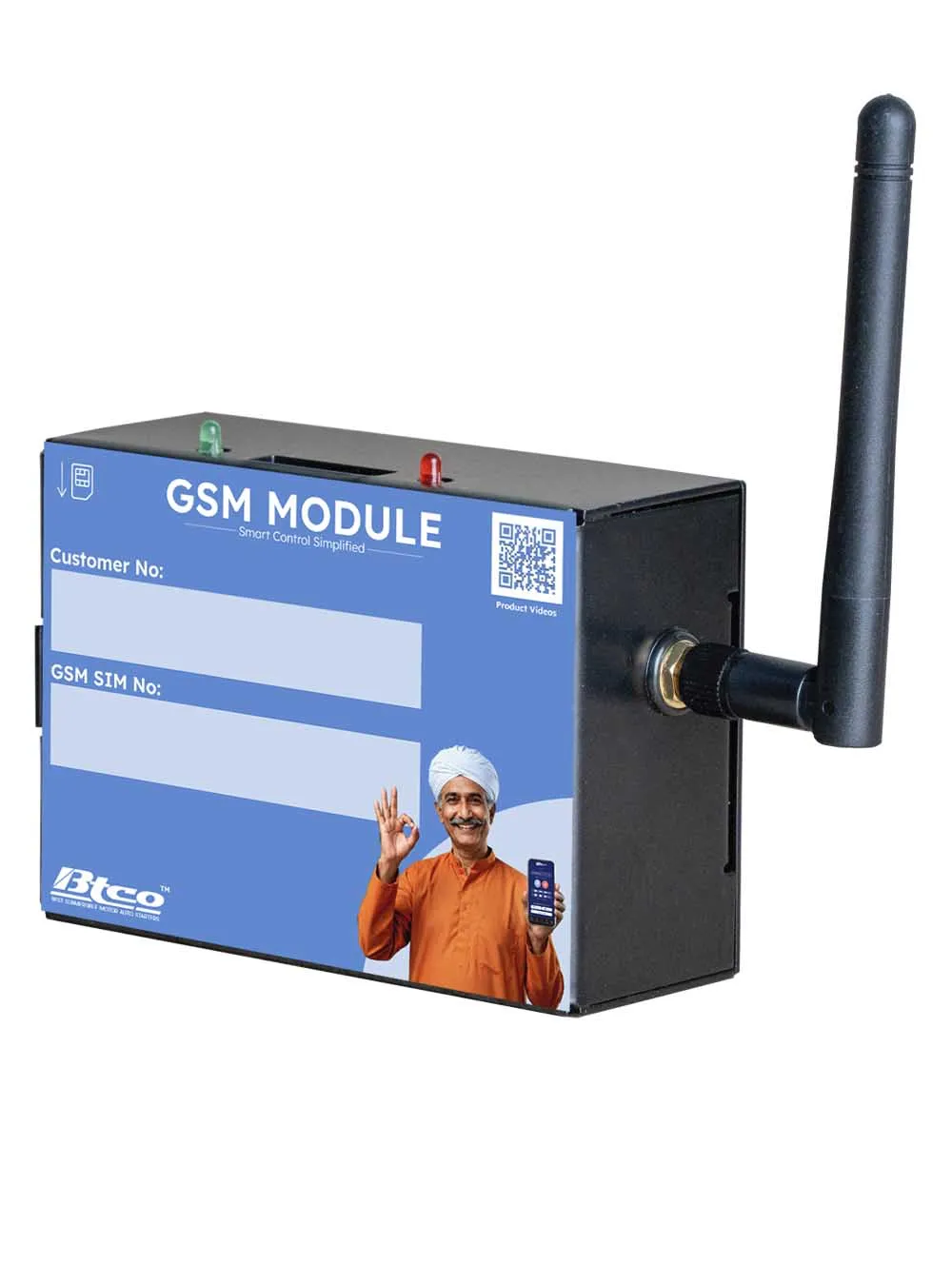

GSM Module (mobile starter)
Fits any BTCO starter: switch ON/OFF by app or SMS, and get alerts for power cuts and trips.
ಕನ್ನಡದಲ್ಲಿ: ನಿಮ್ಮ ಮೋಟಾರ್ಗೆ ಯಾವ ಸ್ಟಾರ್ಟರ್?
ತಪ್ಪು ಸ್ಟಾರ್ಟರ್ನಿಂದ ಸಬ್ಮರ್ಸಿಬಲ್ ಮೋಟಾರ್ ಸುಟ್ಟು ಹೋಗುತ್ತದೆ. ಪ್ರತಿ BTCO ಸ್ಟಾರ್ಟರ್ ಫುಲ್ಲಿ ಆಟೋಮ್ಯಾಟಿಕ್, ಮತ್ತು ಅದರಲ್ಲಿ ಡ್ರೈ ರನ್ ಮತ್ತು ಓವರ್ಲೋಡ್ ರಕ್ಷಣೆ ಇದೆ: ಮೋಟಾರ್ ಸುಡುವ ಮೊದಲೇ ಕರೆಂಟ್ ಕಟ್ ಮಾಡುತ್ತದೆ. ಕೆಳಗಿನ ಪಟ್ಟಿಯಲ್ಲಿ ನಿಮ್ಮ ಮೋಟಾರ್ ಹುಡುಕಿ.
| ನಿಮ್ಮ ಮೋಟಾರ್ | ನಿಮ್ಮ ಲೈನ್ | BTCO ಸ್ಟಾರ್ಟರ್ |
|---|---|---|
| 3 ಫೇಸ್ ಮೋಟಾರ್, ಸಿಂಗಲ್ ಕೇಬಲ್, 3–10 HP | 3 ಫೇಸ್ | DOL-03 ಫುಲ್ಲಿ ಆಟೋಮ್ಯಾಟಿಕ್ DOL ಸ್ಟಾರ್ಟರ್ |
| 3 ಫೇಸ್ ಮೋಟಾರ್, ಡಬಲ್ ಕೇಬಲ್, 7.5–30 HP | 3 ಫೇಸ್ | FASD-03 ಫುಲ್ಲಿ ಆಟೋಮ್ಯಾಟಿಕ್ ಸ್ಟಾರ್ ಡೆಲ್ಟಾ ಸ್ಟಾರ್ಟರ್ |
| 3 ಫೇಸ್ ಮೋಟಾರ್, ಸಿಂಗಲ್ ಕೇಬಲ್, 3–10 HP | ಜ್ಯೂಸ್ ಲೈನ್, 2 ಫೇಸ್ ಅಥವಾ 3 ಫೇಸ್ | DOL-2/3 ಕಂಬೈನ್ಡ್ (ಜ್ಯೂಸ್) ಸ್ಟಾರ್ಟರ್ |
| 3 ಫೇಸ್ ಮೋಟಾರ್, ಡಬಲ್ ಕೇಬಲ್, 7.5–25 HP | 2 ಫೇಸ್ ಅಥವಾ 3 ಫೇಸ್ (10 HP ವರೆಗೆ ಜ್ಯೂಸ್ ಲೈನ್ ಕೂಡ) | FASD-2/3 ಕಂಬೈನ್ಡ್ ಸ್ಟಾರ್ ಡೆಲ್ಟಾ ಸ್ಟಾರ್ಟರ್ |
| ಸಿಂಗಲ್ ಫೇಸ್ ಮೋಟಾರ್, 2–5 HP | ಸಿಂಗಲ್ ಫೇಸ್ | FASP-01 ಸಿಂಗಲ್ ಫೇಸ್ ಸ್ಟಾರ್ಟರ್ (ಡೊಮೆಸ್ಟಿಕ್ 2–3 HP, ಆಗ್ರೋ 2–5 HP) |
| ಫೋನ್ನಿಂದ ಮೋಟಾರ್ ON/OFF ಮಾಡಬೇಕೇ? | ಯಾವುದೇ BTCO ಸ್ಟಾರ್ಟರ್ಗೆ | BTCO GSM ಮಾಡ್ಯೂಲ್ (ಆಪ್ ಮತ್ತು SMS) |
7.5 ಅಥವಾ 10 HP ಮೋಟಾರ್ ಸಿಂಗಲ್ ಕೇಬಲ್ ಅಥವಾ ಡಬಲ್ ಕೇಬಲ್ ಆಗಿರಬಹುದು: ಮೋಟಾರ್ನ ಕೇಬಲ್ ಎಣಿಸಿ ನೋಡಿ.
ಕೆಲವು ಪ್ರಶ್ನೆಗಳಿಗೆ ಉತ್ತರಿಸಿ ಸರಿಯಾದ ಸ್ಟಾರ್ಟರ್ ನೋಡಲು ಸ್ಟಾರ್ಟರ್ ಫೈಂಡರ್ ಬಳಸಿ (ಕನ್ನಡ ಆಯ್ಕೆ ಇದೆ). ಮೋಟಾರ್ ಯಾಕೆ ಸುಡುತ್ತದೆ ಎಂದು ಕನ್ನಡದಲ್ಲಿ ಓದಿ.
Find a starter by feature
Every BTCO starter is made to stop your submersible motor from burning. See how each feature works and which starter has it.
- Submersible motor protectionEvery protection that stops motor burning
- Dry run protectionStops the motor when the borewell runs dry
- Single phasing preventerStops the motor when a phase goes missing
- Overload protectionTrips before too much current burns the winding
- Voltage fluctuation protectionTrips on current when the voltage swings
- Fully automatic starterStarts and stops the motor by itself
- Starter with timerNormal, cyclic and RTC timers
- Water level controllerFills the tank, stops when the sump is empty
- Digital starterVolts, amps and the reason for every trip
Stop your motor from burning
- Dry borewell: the motor runs with no water to cool it and burns. Dry run protection stops it and starts it again after your set time.
- Missing phase or voltage swings: the motor draws too much current and the winding burns. Single phasing and voltage fluctuation protection trip it first.
- Jammed pump or tired motor: the current climbs slowly. Overload protection trips it before the heat does damage.
A rewind costs far more than a good starter. Read why submersible motors keep burning.
Mobile control for any BTCO starter
Fit the BTCO GSM Module and your starter becomes a mobile starter: switch the motor ON or OFF from the free app or by SMS, set timers, and get alerts for power cuts and trips, with the reason.
Before you call us
Tell us these and we'll suggest the right starter and give you all the details:
- Your motor's HP
- Single cable or double cable motor (or single phase motor)
- Your power supply: 3 phase, 2 phase, juice line or single phase
- Do you want timers or a water level controller?
- Do you want to switch the motor from your phone?
Frequently asked questions
Which starter do I need for my submersible motor?
It depends on three things: your motor (single phase or 3 phase), its cable (single cable or double cable) and your power supply. For a 3 phase single cable motor up to 10 HP on 3 phase supply, take the DOL-03. For a double cable motor from 7.5 to 30 HP, take the FASD-03 star delta starter. On juice line or 2 phase supply, take a Combined DOL or Combined star delta starter. For a single phase motor, take the FASP-01.
Which starter for a 5, 7.5, 10, 15, 20 or 30 HP submersible motor?
A 5 HP 3 phase single cable motor takes the DOL-03, and a 5 HP single phase motor takes the FASP-01 Agro. At 7.5 and 10 HP, a single cable motor takes the DOL-03 and a double cable motor takes the FASD-03 star delta. From 12.5 HP up to 30 HP (15, 20, 25 HP) the motor is double cable and takes the FASD-03. On juice line or 2 phase supply, use the Combined starters instead (juice line only up to 10 HP).
What is the difference between single cable and double cable motors?
A single cable motor has one cable with 3 wires and starts directly on line (DOL). A double cable motor has two cables, 6 wires, and starts in star and then changes to delta, which is gentler for big motors. Bigger motors, usually from 7.5 HP, are double cable and need a star delta starter.
Can a 3 phase motor run on 2 phase or juice line?
Yes, with a BTCO Combined starter. The Combined DOL runs a 3 phase single cable motor up to 10 HP on juice line, 2 phase or 3 phase. The Combined star delta runs double cable motors up to 25 HP on 2 phase or 3 phase, and on juice line only up to 10 HP. Above 10 HP, juice line is not safe for the motor.
Do BTCO starters protect the motor from burning?
Yes, that is what they are made for. Every BTCO starter has dry run and overload protection, and the 3 phase starters stop the motor when a phase goes missing. They trip on the motor current, so they also give voltage fluctuation protection; the Single Phase starter adds low and high voltage protection. See every protection in our submersible motor protection guide.
Can I add mobile control later?
Yes. Fit the BTCO GSM Module to any BTCO starter bought from January 2024 onwards and switch the motor from the app or by SMS. If your starter is older, call us to check first. See how a mobile starter works.
How much does a BTCO starter cost?
The price depends on the model, the HP and the variant (with or without timer + WLC). Call or WhatsApp us with your motor's HP and supply, and we'll give you all the details.
What is the warranty?
BTCO starters come with a 1 year warranty (on the DOL-03 and FASD-03 it covers the MPAU unit). Capacitors have a 6 month warranty. See the warranty tab on each product page for the details.
Where can I buy a BTCO starter?
From BTCO dealers across Karnataka. Find your nearest sales and service centre, or call us and we'll tell you.
