Additional information
| Material | Aluminium |
|---|
BTCO Capacitors for Combined Juice Starters – 36 & 50 MFD 660 V, 108 MFD 440 V

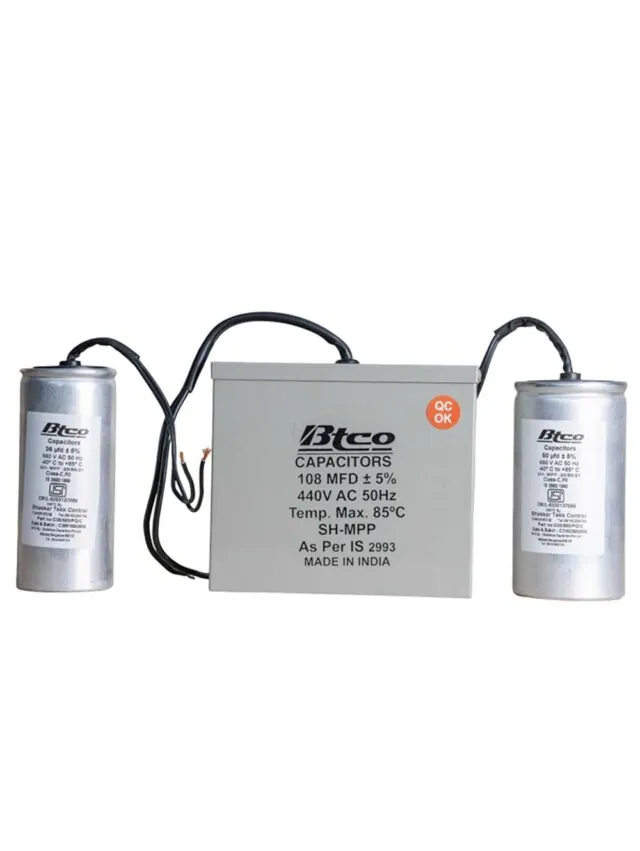

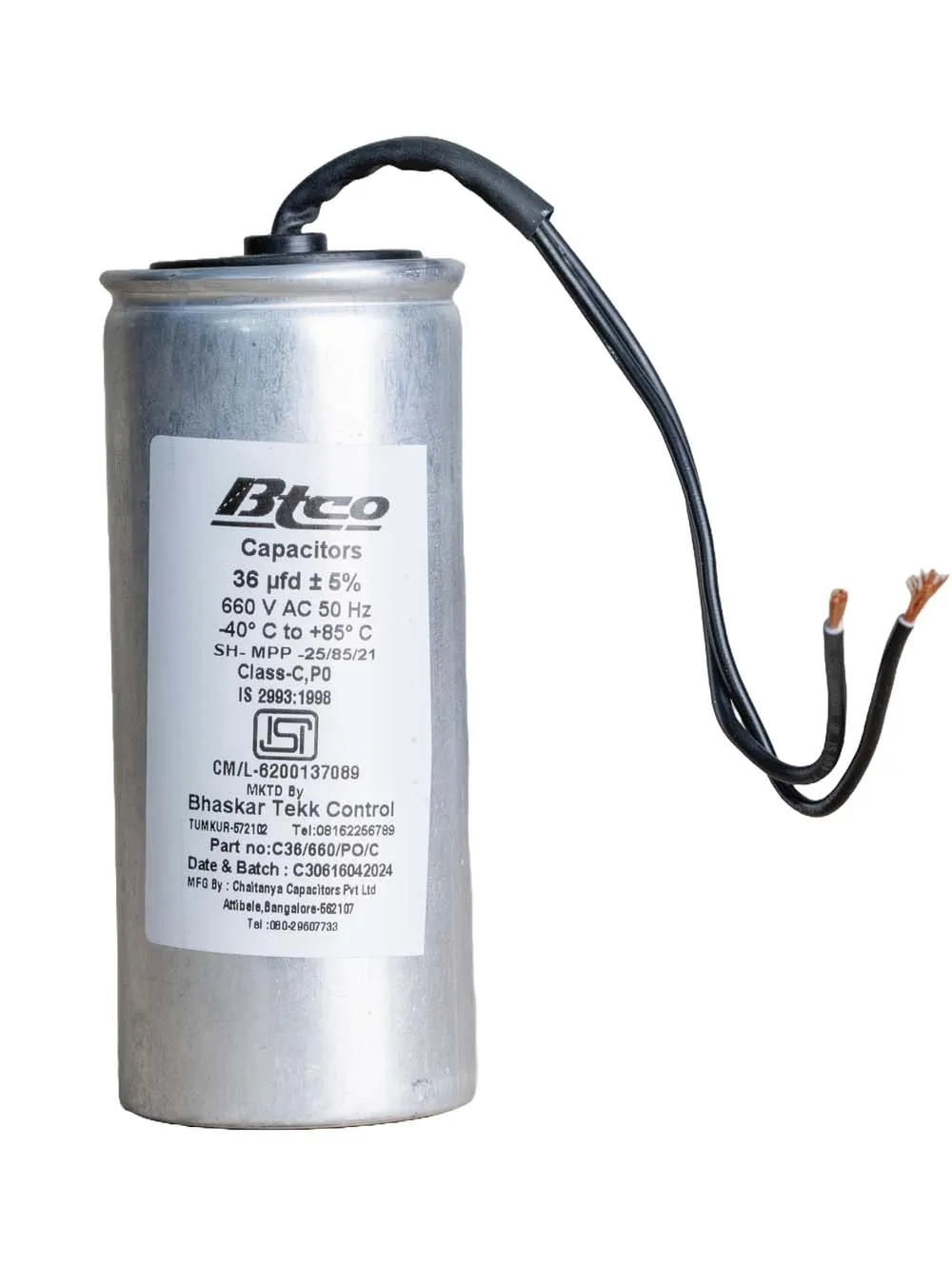

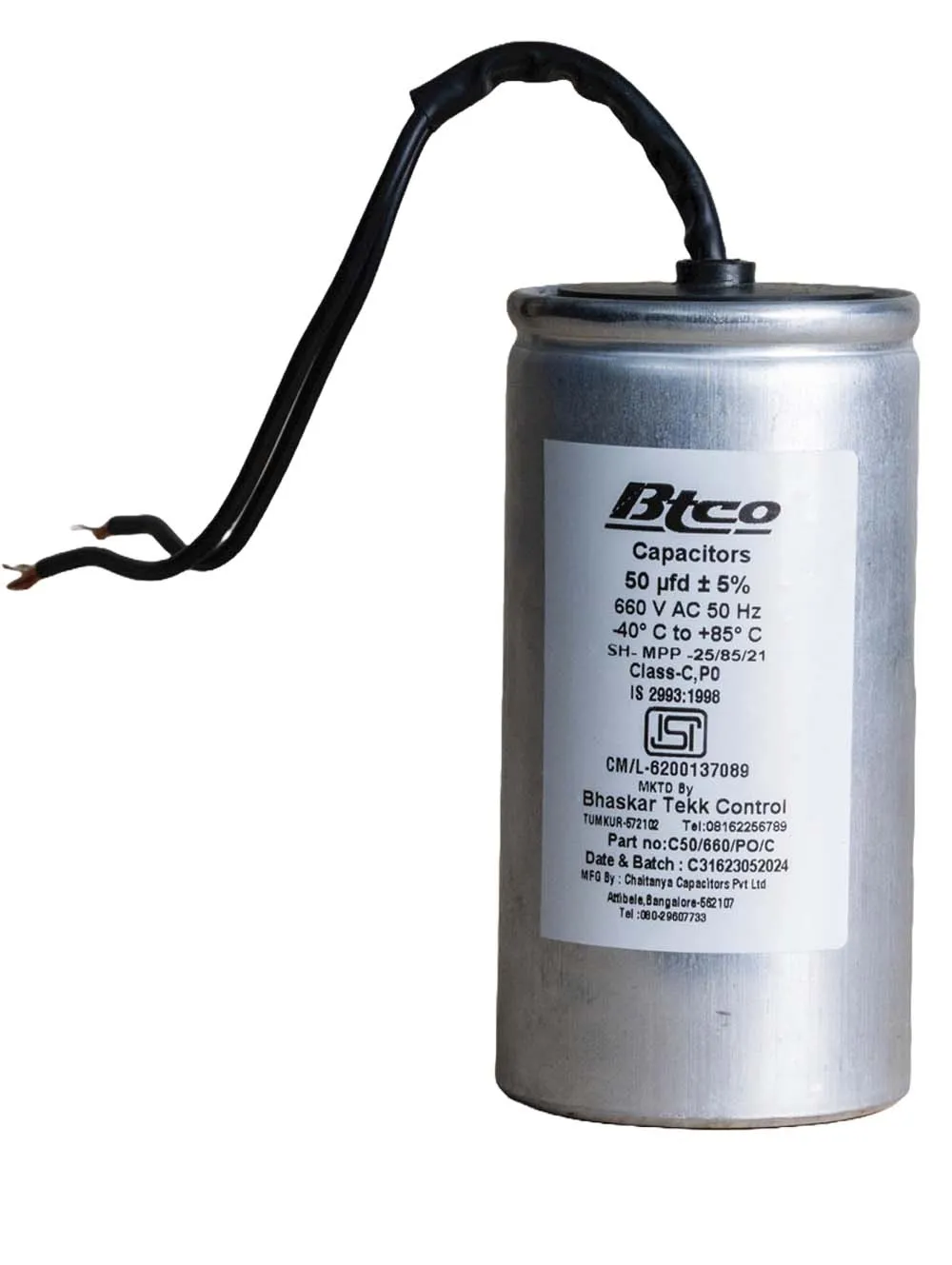

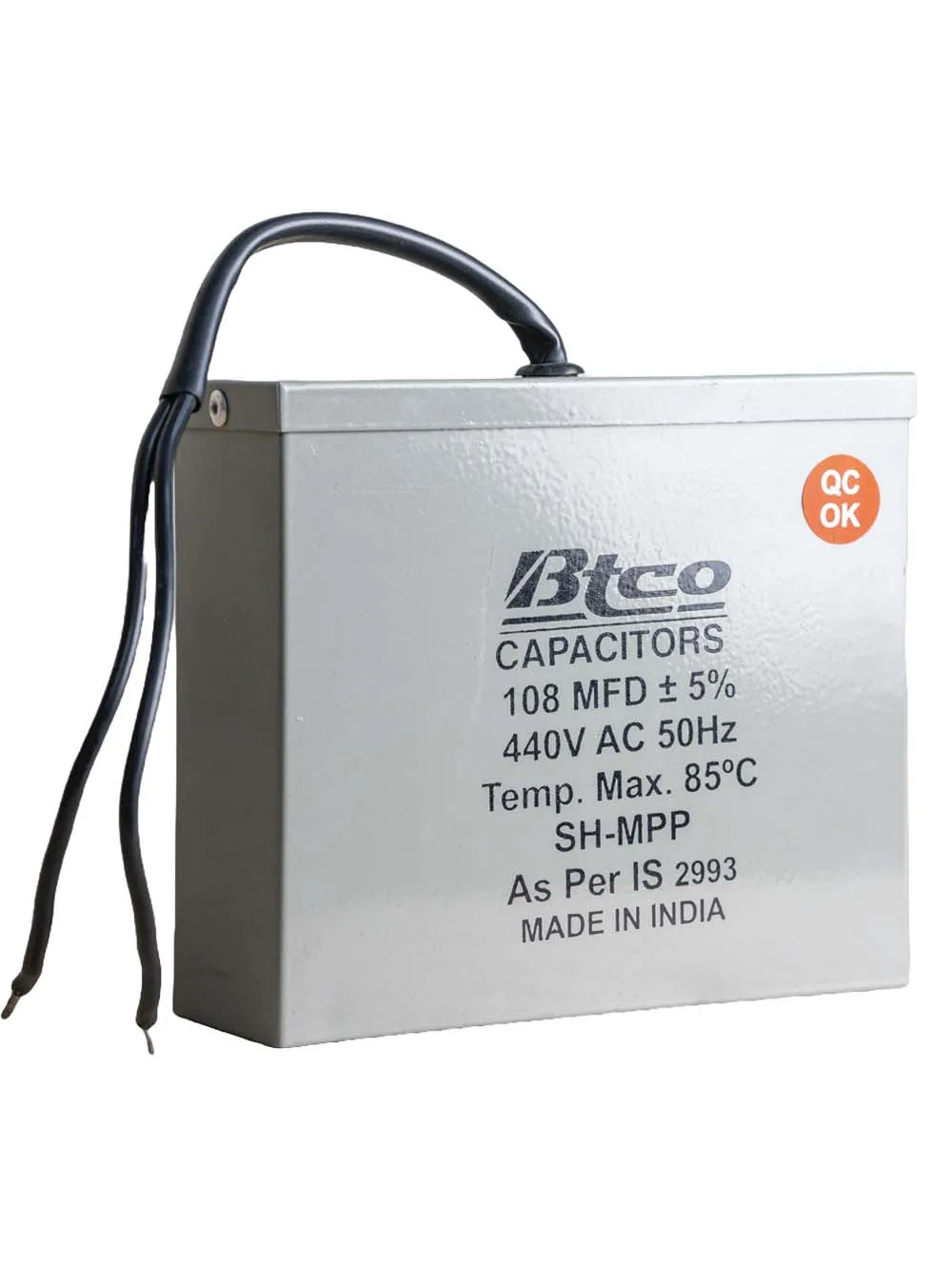

BTCO capacitors are made for BTCO Combined (1/2/3) juice starters, which run 3 phase submersible motors on juice line and 2 phase supply. They come in three sizes: 36 MFD and 50 MFD (660 V AC, cylindrical, ISI marked) and 108 MFD (440 V AC, box type), all self-healing polypropylene capacitors made to IS 2993.
What they do
- When the supply drops to 2 phase or juice line, the Combined starter uses these capacitors to make up the missing phase, so the 3 phase motor can start and keep running
- They connect on the Touch-1, Touch-2 and Run lines of the starter, and are used in combination
- The starter switches them by itself and keeps checking them. If one fails, the display shows “Check Capacitor”
Which capacitors do I need?
It depends on your motor and the supply conditions at your farm, so there is no single chart that fits everyone. Our dealer or technician will choose the right combination when your Combined starter is installed, and can change it later if your supply changes.
Specifications
| 36 MFD | 50 MFD | 108 MFD | |
|---|---|---|---|
| Capacitance | 36 µF ±5% | 50 µF ±5% | 108 µF ±5% |
| Voltage | 660 V AC, 50 Hz | 660 V AC, 50 Hz | 440 V AC, 50 Hz |
| Type | Cylindrical, aluminium can | Cylindrical, aluminium can | Box type |
| Construction | Self-healing polypropylene (SH-MPP) | Self-healing polypropylene (SH-MPP) | Self-healing polypropylene (SH-MPP) |
| Temperature | −40 °C to +85 °C | −40 °C to +85 °C | Up to 85 °C |
| Standard | IS 2993, ISI marked | IS 2993, ISI marked | IS 2993 |
| Warranty | 6 months | 6 months | 6 months |
Which starters use them?
- Combined DOL juice starter: single cable 3 phase motors, 3 to 10 HP, on juice line, 2 phase or 3 phase
- Combined Star Delta starter: double cable 3 phase motors, 7.5 to 25 HP, on 2 phase or 3 phase (juice line up to 10 HP)
Video in Kannada: capacitor connection for 2 phase and juice line on the Combined starter — watch the BTCO starter videos.
Also called: capacitor for submersible pump starter, submersible pump capacitor, starter capacitor, condenser for motor starter, capacitor for juice starter, condenser for juice starter, capacitor for 3 phase motor on 2 phase, run capacitor for 3 phase motor, capacitor box, 36 MFD capacitor, 36 MFD 660 V capacitor, 50 MFD capacitor, 50 MFD 660 V capacitor, 108 MFD capacitor, 108 MFD 440 V capacitor.
Warranty against manufacturing defects from the date of sale: one year for starters and GSM modules, six months for capacitors.
- Starters: the warranty covers the BTCO MPAU unit inside the starter. Wiring, contactors and connectors are not covered.
- GSM Module: fully covered.
- Capacitors: six months.
- The warranty can be claimed only if the warranty sticker on the product is intact.
Warranty servicing can be done at our service centres. How to claim · Sales & Service Centres
Frequently asked questions
Which capacitors do I need for my motor?
It depends on your motor and the supply conditions at your farm, so there is no single chart that fits everyone. Our dealer or technician will choose the right combination of 36, 50 and 108 MFD capacitors when your Combined starter is installed.
Can I use these capacitors with any starter?
They are made for BTCO Combined (1/2/3) juice starters, which connect them on the Touch-1, Touch-2 and Run lines and switch them automatically.
Why do I need capacitors with a Combined starter?
On 2 phase supply or juice line, a 3 phase motor is missing a phase. The Combined starter uses the capacitors to make up that phase, so the motor can start and keep running.
What does 660 V mean on the 36 and 50 MFD capacitors?
It is the voltage the capacitor is rated for. The 36 and 50 MFD capacitors are rated for 660 V AC, and the 108 MFD box capacitor for 440 V AC.
What does ISI marked and IS 2993 mean?
IS 2993 is the Indian standard for self-healing AC motor capacitors. The 36 and 50 MFD capacitors carry the ISI mark, and the 108 MFD capacitor is made as per IS 2993.
How will I know if a capacitor has failed?
The Combined starter keeps checking its capacitors. If one fails, the display shows "Check Capacitor". Call your dealer or technician to check and replace it.
What warranty do I get?
Six months from the date of sale against manufacturing defects. Service is available at our sales and service centres across Karnataka.
What does MFD mean on a capacitor?
MFD means microfarad (µF), the size of the capacitor. BTCO capacitors come in 36 MFD and 50 MFD (660 V) and 108 MFD (440 V).
What is the price of BTCO capacitors?
The price depends on the capacitors your motor needs. We don't show prices online: call or WhatsApp us with your motor's HP and we'll give you all the details.
Where can I buy BTCO capacitors near me?
From BTCO sales and service centres across Karnataka and in nearby districts of Andhra Pradesh and Maharashtra. Find your nearest dealer, or call or WhatsApp us and we'll tell you where to get the capacitors.
