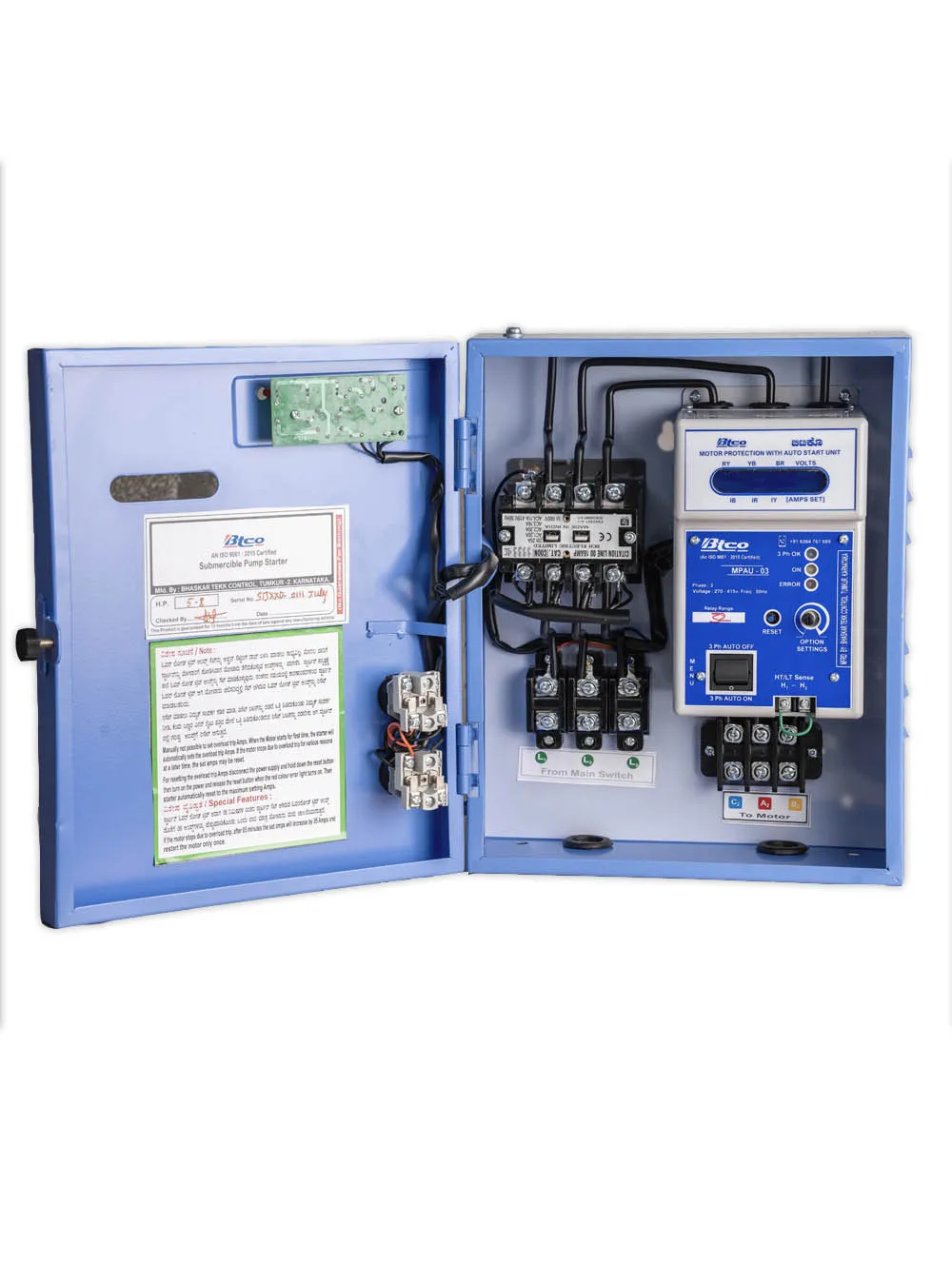

BTCO DOL-03 fully automatic DOL starter with dry run and single phasing protection, door open, showing the BCH contactors and the MPAU unit with its digital display

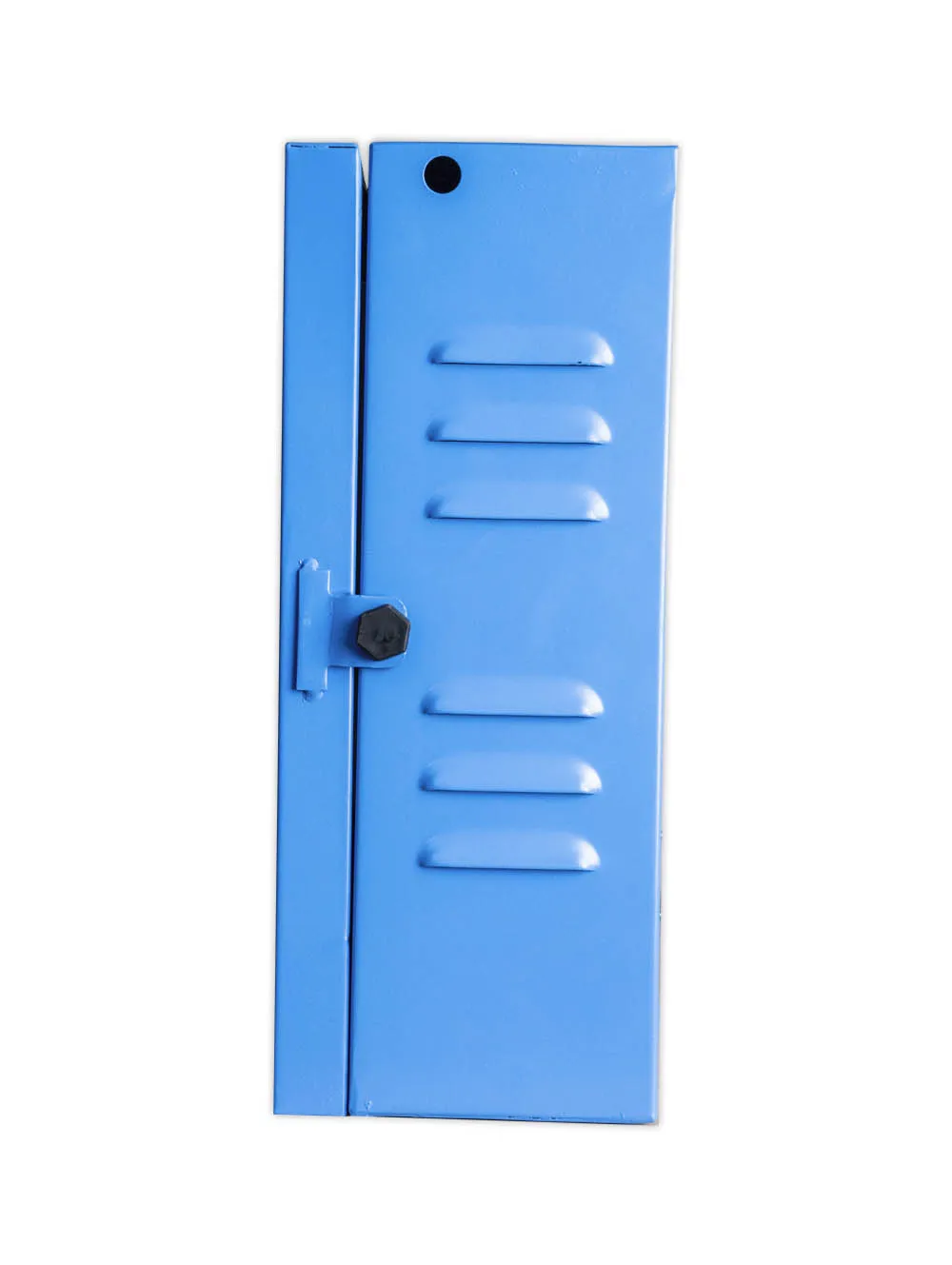

Side of the BTCO DOL-03 starter box, with air vents and the door lock

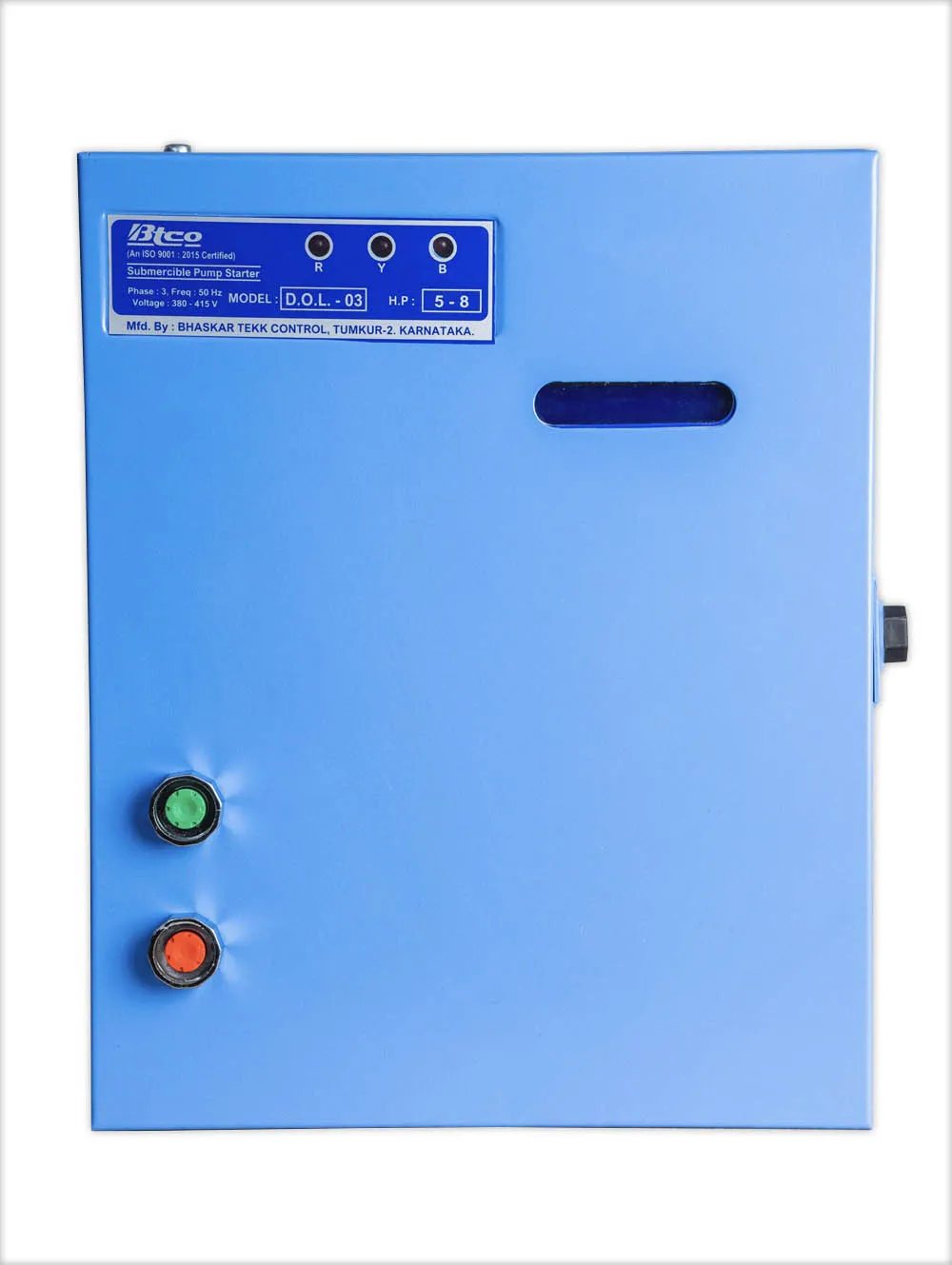

Front of the BTCO DOL-03 3 phase submersible pump starter, with green ON and red OFF buttons and R, Y, B phase lights

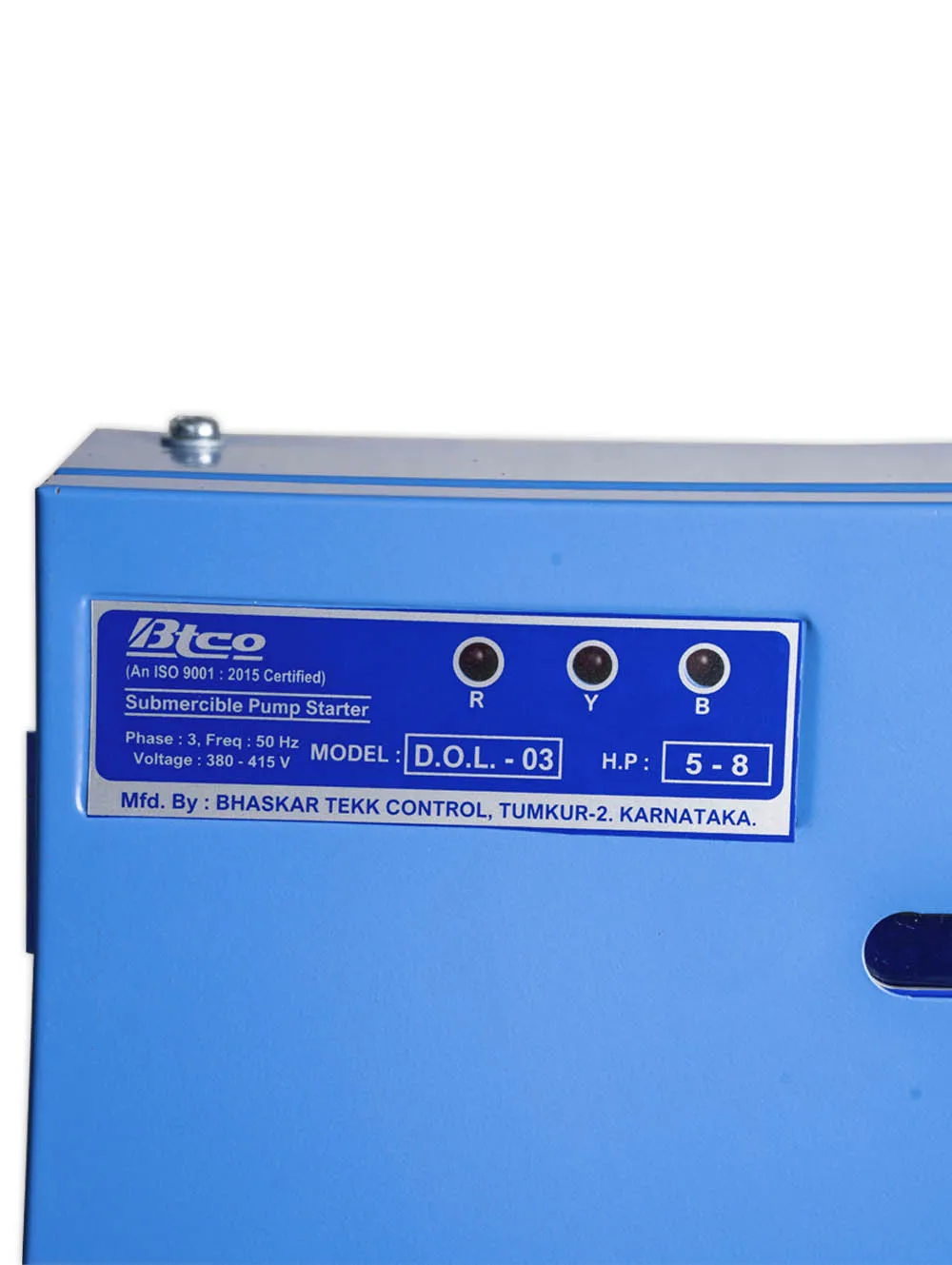

BTCO DOL-03 label: ISO 9001:2015 certified, 3 phase, 50 Hz, 380–415 V, made in Tumakuru, Karnataka

BTCO DOL-03 3 Phase DOL Auto Starter for Submersible Pump, 3–10 HP (Single Cable)

Available HP variants:3-7.5HP7.5-10HPCallWhatsApp

SKU DOL – 03 Categories ,

BTCO DOL-03 is a fully automatic 3 phase DOL (direct on line) starter for single cable submersible and borewell pump motors from 3 to 10 HP. It protects the motor from single phasing, dry run, overload and earth faults, starts it again by itself after a power cut or a dry run trip, and works with the BTCO app if the mobile control module is attached.

Choose your variant: 3–7.5 HP or 7.5–10 HP, each with or without timer + WLC.

Motor protection

When the starter trips, the display shows the reason: Mains Problem, Check Cable/Kit, Ground/Imbalance, Overload Trip or Dry Run Trip.

See how each protection works in our submersible motor protection guide, and read why submersible motors keep burning. Not sure whether your motor needs DOL or star delta? Read DOL vs star delta starter.

Automatic operation and monitoring

  • Auto ON / OFF, with an auto start delay after power returns (5 to 240 seconds, you set it)
  • Dry restart time: after a dry run trip, the starter waits for the time you set and then starts the motor again by itself, so the borewell has time to refill
  • Timer + WLC variant: normal, cyclic and RTC (real time clock) timers
  • Water level controller (timer + WLC variant): with BTCO magnetic sensors, it starts the pump when the tank is low and stops it when the tank is full or the sump is empty
  • Digital voltmeter (RY, YB, BR) and ammeter (R, Y, B) for all 3 phases at once
  • LCD display for settings, and LED lights for R, Y and B phases

Control it from your phone

Attach the BTCO GSM mobile control module (sold separately) to switch the motor ON or OFF, get power cut and trip alerts, and see voltage and current in the free BTCO Starters app or by SMS. See how a BTCO mobile starter works and which one you need.

Specifications

Model DOL-03
Motor 3 phase single cable submersible / borewell motor, 4″ and 6″ pumps, any number of stages
Motor HP 3–7.5 HP or 7.5–10 HP
Supply 3 phase, 380–415 V, 50 Hz
Starting method Direct on line (DOL)
Control unit BTCO MPAU (motor protection with auto start unit)
Relay range 6–32 A
Contactor BCH 4 pole: 16 A (3–7.5 HP), 25 A (7.5–10 HP)
Connectors 1-way 60 A × 3, 3-way 45 A × 1
Box Powder-coated sheet metal with air vents, 315 × 252 × 125 mm, 5.4 kg
Warranty 1 year on the MPAU unit
Made by BTCO, Tumakuru, Karnataka – ISO 9001:2015 certified

Which BTCO starter is right for your motor?

Videos in Kannada, Telugu and English: how to connect and set up the starter, set dry run protection and the auto start delay, and clear each error message — watch the BTCO starter videos.

Also called: 3 phase DOL starter, DOL motor starter, direct on line (DOL) starter, digital DOL starter, 3 phase digital starter, fully automatic DOL starter, auto starter for 3 phase motor, automatic motor starter, automatic on off starter for submersible pump, electronic motor starter, submersible motor starter, submersible pump starter, 3 phase starter for submersible pump, starter for borewell motor, borewell starter, borewell starter box, starter box for submersible pump, agriculture motor starter, farm motor starter, water pump starter, single cable starter, submersible pump starter with timer and water level controller (timer + WLC variant), DOL starter with single phase preventer, DOL starter panel, motor starter panel, starter panel for motor, submersible pump control panel, dry run protection starter, overload protection starter, motor protection starter, smart starter, mobile starter (with the BTCO GSM Module). Whatever you call it, it protects your motor from burning.

DOWNLOAD BROCHURE

Set up a submersible motor starter in under 3 minutes (Kannada)
How to connect and set up BTCO starters (DOL and star delta)

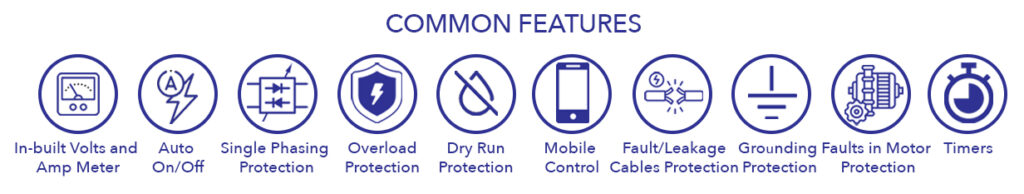

Common features of BTCO starters: volts and amps meter, auto ON/OFF, single phasing, overload and dry run protection, mobile control, cable fault, grounding and motor fault protection, timers

Click here for Product Videos

Feature Description Message Displayed
Mains Fault Detection Checks if there are any problems in Mains Mains Problem
Protection from Cable/Kit faults Monitors faults/leakages in cable that goes to motor or in winding Check Cable/Kit
Grounding and Imbalance Detection Keeps track of grounding or Imbalance issues Ground/Imbalance
Dry Run detection Provides protection against dry-run of the pump using a current algorithm. It can restart automatically after the preset timer Dry Run Trip
Overload detection Starter watches for overload scenario and trips motor in case of deviation from Overload trip amps set Overload Trip
Device Internal Health monitor Auto detects in case of issues with device internally Instrument/Inst Fault
Auto Overload trip amps setting When starter connected with motor for the first time, it auto detects the healthy amps range and sets it NA
  1. Most suitable for Submersible Pumps of size 4″ and 6″
  2. Works for the range 3-7.5HP and 7.5-10HP and for any number of stages
  3. Built-in 3-phase auto Start Feature with a start delay from 5 seconds to 240 seconds configurable by the user
  4. Built-in digital Ammeter viz. IR, IY, and IB for all 3-Phases simultaneously
  5. Built-in digital voltmeter viz. VRY, VYB, and VBR  for all all 3-Phases simultaneously
  6. Add a BTCO GSM Module (4G) and switch the starter ON or OFF from your phone, by the free BTCO Starters app or by SMS, with alerts for power cuts, motor status and trips. Note: the GSM Module is an optional add-on, sold separately. See BTCO GSM Module · BTCO mobile starter app.
  7. LCD to interact and make settings on the device
Specification Details
Incorporated with BTCO MPAU – 1 No.
BCH Make Contactor (for 3-7.5 HP) 16A 4 Pole – 1 No.
BCH Make Contactor (for 7.5-10 HP) 25A 4 Pole – 1 No.
1 Way Connectors 60A – 3 No.
3 Way Connectors 45A – 1 No.
LED PCB for 3 Phase Indication 1 No.

Additional information

Color

Blue
Material

Powder Coated Sheet Metal Box with Air Ventilation
Dimension

315 X 252 X 125 MM
Weight

5.4 Kgs
HP

3-7.5HP, 7.5-10HP

The below features can be provided with an extra cost:

  • Timers
    Types of Timers below:

    • Normal Timer
    • Cyclic Timer
    • Real-Time Clock (RTC) Timer
  • Magnetic Sensors for Water Level Controlling
  • GSM Module (4G) – control your starter from your phone
    • Connects to the BTCO MPAU with the interfacing wire supplied.
    • Switch the motor ON or OFF from the free BTCO Starters app or by SMS, from any distance.
    • See voltage, current and motor status, and get the reason when the starter trips.
    • App alerts for power cut, power restored, motor started and motor stopped.
    • Change the overload trip amps from your phone.
    • In the app: 4 timer modes, Auto Switch, 7-day logs and up to 100 starters. Get the app on Google Play.
    • App control needs a GSM Module bought after August 2025; older modules work by SMS.

    See BTCO GSM Module · BTCO mobile starter app.

Frequently asked questions

Will the DOL-03 starter work on juice line (series line) or 2 phase supply?

No. The DOL-03 needs normal 3 phase supply. If your village gets only juice line or 2 phase power, choose the BTCO Combined DOL starter, which runs 3 phase motors up to 10 HP on juice line, 2 phase or 3 phase.

Which variant should I choose for my motor?

The 3–7.5 HP variant is for motors from 3 to 7.5 HP, and the 7.5–10 HP variant is for 7.5 to 10 HP motors. Tell us your motor's HP when you call and we'll suggest the right one. For motors above 10 HP, use the Star Delta starter.

Does the motor start again by itself after a power cut?

Yes. When power comes back, the starter waits for the auto start delay you have set (5 to 240 seconds) and then starts the motor on its own.

Does the motor start again by itself after a dry run trip?

Yes. You set a dry restart time on the starter. After a dry run trip it waits for that time, so the borewell can refill, and then starts the motor again on its own.

What protections does the starter have?

Single phasing, dry run, overload, earth fault and imbalance, cable or kit fault and leakage, and motor fault protection. When it trips, the display tells you why, for example Dry Run Trip or Overload Trip.

Should I buy the variant with or without timer + WLC?

Choose the timer + WLC variant if you want the motor to run for set hours or at set times (normal, cyclic and RTC timers), or to fill a tank automatically with BTCO magnetic water level sensors. If you only need automatic ON/OFF and protection, the variant without timer + WLC is enough. See how the timers work and how the water level controller works.

Can I control the starter from my phone?

Yes, if the BTCO GSM mobile control module is attached. You can then switch the motor ON or OFF, get alerts and see voltage and current in the free BTCO Starters app or by SMS.

DOL or star delta: which starter does my motor need?

Single cable 3 phase motors up to 10 HP use a DOL starter like the DOL-03. Double cable motors from 7.5 to 30 HP use a star delta starter, which starts the motor gently to reduce the starting current.

Does the DOL-03 protect the motor from voltage fluctuation?

Yes. It trips on the current the motor draws, so when high or low voltage pushes the current out of the safe range, it stops the motor before it overheats. How voltage fluctuation protection works.

Does the DOL-03 have dry run protection?

Yes. It senses dry run from the motor current, with no sensor in the borewell, and stops the motor before it overheats. After the dry restart time you set, it starts the motor again by itself. Dry run protection explained.

Does the DOL-03 have single phasing protection?

Yes, built in. When a phase goes missing, it stops the motor and shows Mains Problem, so you don't need a separate single phasing preventer. Single phasing protection explained.

What warranty do I get, and where can I get service?

One year from the date of sale against manufacturing defects, covering the MPAU unit inside the starter. Service is available at our sales and service centres across Karnataka.

What is a DOL starter, and what does DOL mean?

DOL means direct on line: the starter connects the motor straight to the full 3 phase supply to start it. The BTCO DOL-03 is a fully automatic, digital 3 phase DOL starter for single cable submersible and borewell motors from 3 to 10 HP. Its digital MPAU unit protects the motor from dry run, single phasing, overload and voltage fluctuation, the main reasons submersible motors burn.

Which starter is best for a 5 HP, 7.5 HP or 10 HP submersible pump?

For a 3 phase single cable motor, the DOL-03: the 3–7.5 HP variant for 3 to 7.5 HP motors, or the 7.5–10 HP variant for 7.5 and 10 HP. A double cable 7.5 or 10 HP motor needs the star delta starter, and on 2 phase supply or juice line, the Combined juice starter. Not sure? Use Find the right starter.

Can I use a DOL starter for a 15 HP or 20 HP motor?

Not the DOL-03: it is made for motors up to 10 HP. Bigger submersible motors are double cable and need a star delta starter, which starts them with much less current. The BTCO FASD-03 star delta starter covers 7.5 to 30 HP.

Is this a complete starter panel (control panel) for a submersible pump?

Yes. The DOL-03 comes as a complete 3 phase control panel in a metal box: the contactor, the MPAU digital protection and auto start unit with its display, and the terminals for the supply and the motor cable.

Will it work with my Texmo, CRI or Kirloskar motor?

Yes. It works with 3 phase submersible and borewell motors of any brand, for example Texmo, CRI or Kirloskar, as long as the motor's HP and cable match the variant you choose, and it protects the motor from burning just the same.

What is the price of a 3 phase DOL starter?

The price depends on the HP variant and whether you want timer + WLC. We don't show prices online: call or WhatsApp us with your motor's HP and we'll give you all the details.

Where can I buy a DOL starter near me?

From BTCO sales and service centres across Karnataka and in nearby districts of Andhra Pradesh and Maharashtra. Find your nearest dealer, or call or WhatsApp us and we'll tell you where to get the DOL-03.

Warranty against manufacturing defects from the date of sale: one year for starters and GSM modules, six months for capacitors.

  • Starters: the warranty covers the BTCO MPAU unit inside the starter. Wiring, contactors and connectors are not covered.
  • GSM Module: fully covered.
  • Capacitors: six months.
  • The warranty can be claimed only if the warranty sticker on the product is intact.

Warranty servicing can be done at our service centres. How to claim · Sales & Service Centres
