| Fault Message | Causes |
|---|---|
| Check Cap / Cable | a) Capacitor may be short b) Yellow Cable may be cut c) Starting winding may be short |
| Overload Trip (restarts at once after 10 min. of Trip) | a) Relay setting may be less b) Thrust bearing may be down c) Pump might be stuck d) Winding may be defective |
| Dry Run Trip (restarts after set time) | a) Dry setting may be high b) Motor may be running dry |
| Check Cable/Connection | a) Motor is not connected b) Red or Blue cable might be disconnected |
| Contactor Jam | Power relay/contactor may be stuck |
| Inst. Fault | Fault in BTCO SPMC |
| Open Cable / Instrument | Yellow cable may be disconnected |
| Overflow Trip | Overhead tank is full |
| Sump Empty | No water in the sump |

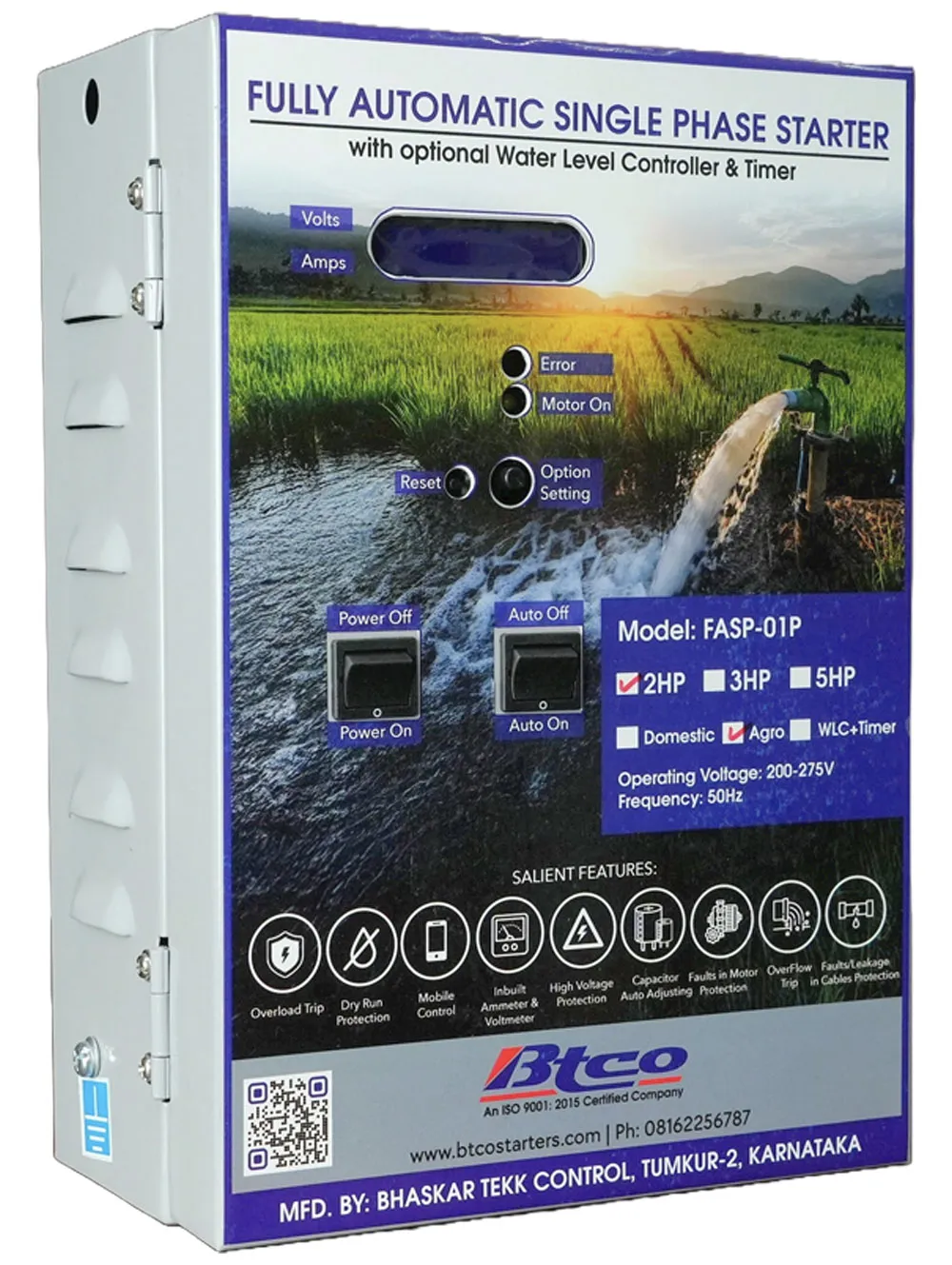

Technical Specifications
-
Starter Type: Single Phase Starter
-
Model: FASP-01
-
Motor Capacity & Relay Range:
-
1 HP (Domestic – WLC): 4 – 16 A
-
2 & 3 HP (Domestic): 6 – 32 A
-
2 & 3 HP (Agro): 6 – 32 A
-
5 HP (Agro): 6 – 40 A
-
-
Phase: Single Phase
-
Operating Voltage: 240 V AC
-
Frequency: 50 Hz

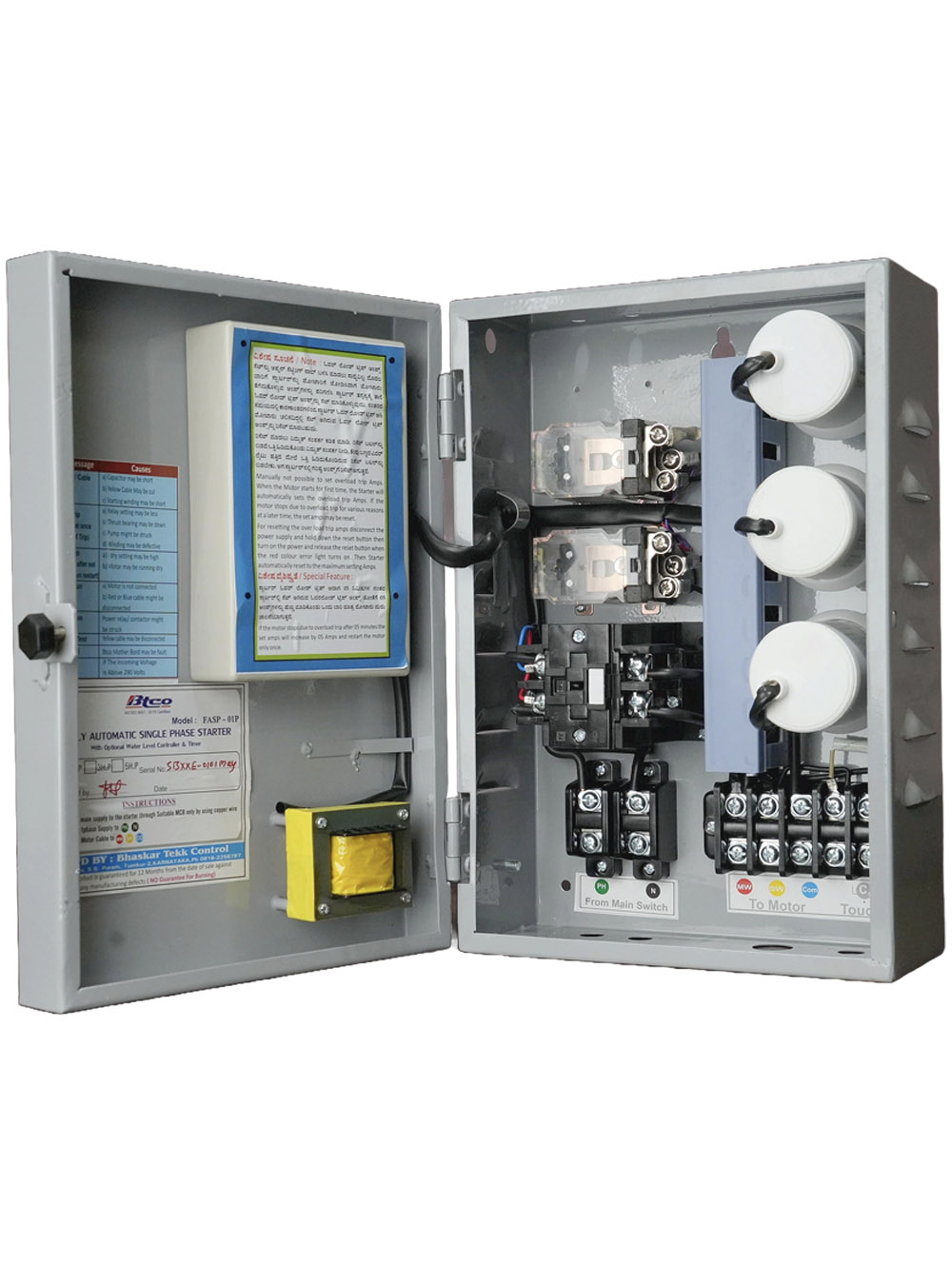

High-Quality Components & Build
-
BTCO SPMC Unit – 1 No.
-
TC Make Contactors:
-
25A, 2-Pole – 1 No. (1.5–3 HP)
-
40A, 2-Pole – 1 No. (5 HP)
-
-
Heavy-Duty Connectors:
-
1-Way Connectors – 60A (2 Nos.)
-
3-Way Connector – 60A (1 No.) (Domestic)
-
6-Way Connector – 60A (1 No.) (Agro)
-
-
Power Relay 40A:
-
Agro – 2 Nos.
-
Domestic – 1 No.
-
Capacitor Configuration
-
1.5 HP (Domestic):
100/120 MFD – 1 No., 36 MFD – 2 Nos. -
2 HP (Domestic):
150/200 MFD – 1 No., 36 MFD – 1 No., 50 MFD – 1 No. -
2 HP (Agro):
150/200 MFD – 1 No., 50 MFD – 2 Nos. -
3 HP (Domestic & Agro):
200/250 MFD – 1 No., 50 MFD – 1 No., 72 MFD – 1 No. -
5 HP (Agro):
200/250 MFD – 1 No., 72 MFD – 2 Nos.
